Autel Nano+ Drone

$1,499 incl GST

EVO Nano+ Drone

Sharper. Smoother. Superior.

1/1.28 ″CMOS

EVO Nano+ is packed a 1/1.28-inch(0.8-inch) CMOS sensor capable of 50 MP photos. A RYYB color filter array design with a large aperture of f/1.9 offers superior noise reduction capabilities and the power to effortlessly produce quality images in low-light conditions. Track fast-moving subjects with incredible precision through PDAF + CDAF autofocus system; Squeeze rich detail from shadows and highlights no matter how extreme the lighting conditions using HDR mode, which rapidly snaps several photos at different exposures so they can be stitched together in post-production.

Description

Make Every Moment Matter

Sharper. Smoother. Superior.

1/1.28" CMOS

EVO Nano+ is packed a 1/1.28-inch(0.8-inch) CMOS sensor capable of 50 MP photos. A RYYB color filter array design with a large aperture of f/1.9 offers superior noise reduction capabilities and the power to effortlessly produce quality images in low- light conditions. Track fast-moving subjects with incredible precision through PDAF + CDAF autofocus system; Squeeze rich detail from shadows and highlights no matter how extreme the lighting conditions using HDR mode, which rapidly snaps several photos at different exposures so they can be stitched together in post-production.

1/1.28" (0.8") CMOS

RYYB Sensor

2.44μm Pixel( Bin2)

PDAF+CDAF Lens

Darker Shadows. Brighter Highlights.

which rapidly snaps several photos at different exposures so they can be stitched together in post-production.

Add A Splash Of Colour

Life is more than one color — and now so is your drone. Dress to impress with an elegant Arctic White. Fly under the radar cool and
confident with a sleek Deep Space Gray. Make a statement with Blazing Red. Or go boldly into the unknown with the classic Autel Orange.

Greatness In Your Grasp

At barely half a pound, the EVO Nano weighs about as much as an orange and fits almost anywhere—from the side pocket of your hiking pack to the palm of your hand.

Dynamic Track 2.1: Master Subject Tracking

Recruit your Nano to automatically follow any person, animal, or vehicle so you can focus on your activities while your Nano handles the cinematic side.

MovieMaster: Quick And Easy Movies

Apply your favorite templates from the Autel Sky app for quick and easy movie-making, allowing you to drastically reduce the tedious editing process so you can share your creations in minutes.

Easy Editing

Imaginative Templates

Quick Sharing

Fly Free - No Lags, No Limits

Fly farther while maintaining crisp, clear visuals with Autel SkyLink, our strongest image transmission system yet, which offers a transmission range of 6.2 miles, transmission quality of 2.7K/30FPS, and superior anti-interference capabilities, all while relaying stunning HD video.

Snap And Share In Seconds

Done shooting? Simply place your smartphone close to the Nano to upload photos and videos at a speedy rate of 160Mbps using the Autel Sky app.

Snap And Share In Seconds

Record voices and ambient sounds on the ground through the remote control’s built-in microphone, allowing you to bring your videos to life even when your drone is miles above.

Fly Safe With Advanced Obstacle Avoidance

The EVO Nano series is the first and only aircraft series of its size to offer an advanced obstacle avoidance system — making it the obvious choice for users looking to avoid crashes and preserve the life of their aircraft. With three-way binocular vision sensors that enable the drone to perceive obstructions in front of it, behind it, and below it, the Nano+ can easily brake to avoid collisions.

More Battery. More Time. More Creativity.

The EVO Nano can fly continuously for 28 minutes, which means plenty of time to experiment with creative angles and dream up inventive shots.

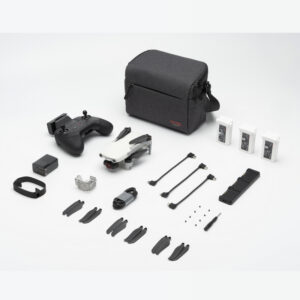

What's In The Box?

Aircraft (with battery) – 1
Simple Remote Controller – 1
Adapter – 1
Remote Controller Charger – 1
Multi-Charger – 1
Extra Battery – 2
USB Lightning – 1
Carry Bag – 1
Prop Holder – 1
USB Type C – 1
USB Type B – 1
Gimbal Cover – 1
Spare Propeller – 1
Standard Package Box, Manual , etc – 1

Technical Specifications

Takeoff Weight (without Accessories)249g
Dimensions (including blades)Folded: 140×90×50mm
Unfolded: 264×310×50mm

Wheelbase231mm
Max Ascent Speed6m/s (sport), 4m/s (normal), 3m/s (stable)
Max Level Flight Speed4m/s (sport), 3m/s (normal), 2m/s (stable)
Max Level Flight Speed(no wind, near sea level)15m/s (sport), 10m/s (normal), 5m/s (stable)
Max Takeoff Altitude4000m
Max Flight Time (no wind)28min
Max Hovering Time (no wind)26min
Max  Flight Distance (no wind)16.8km
Max Wind ResistanceLevel 5
Max Tilt Angle33°(movement), 25°(normal), 25°(stable)
Max Angular Velocity200°(movement), 120°(normal), 60°(stable)
Operating Temperature-10°C ~ 40°C
Operating Frequency2.400-2.4835GHz,5.725-5.850GHz,5.150-5.250GHz
Transmission Power (EIRP)FCC:≤30dBm
GNSSGPS
Hovering AccuracyVertical:±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning); Horizontal:±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning);
Mechanical RangePitch: -125°~35°
Roll:  -34°~33°
Yaw:  -25°~25°
Controllable RangePitch: -90°~ 0°
Stabilization3-axis
Max Control Speed (pitch)30°/s
Angular Vibration Range±0.003°
ForwardAccurate measurement range:0.5~16m
Effective sensing speed:<10m/s
FOV:Horizontal<40°,Vertical<30°
BackwardAccurate measurement range:0.5~18m
Effective sensing speed:<12m/s
FOV:Horizontal<40°,Vertical<30°
DownwardAccurate measurement range:0.5~20m
Visual hovering range:0.5~40m
FOV:Horizontal<40°,Vertical<30°
Operating environmentForward, backward:
Surface with clear pattern and adequate lighting(lux> 15)
Downward:
Surface with clear pattern and adequate lighting(lux> 15);
Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)



SensorCMOS:1/1.28 inch
Effective pixels:50MP
Pixel size: 2.44μm*2.44μm (Bin2)
LensFOV: 85°
Equivalent focal length: 23mm
Aperture: f/1.9
Focus range: 0.5m ~ ∞
Focus mode::PDAF+CDAF/MF
Shooting modeAutomatic mode (P gear): EV adjustable, ISO/Shutter automatic
Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable
Shutter priority (S file): Shutter/EV adjustable, ISO automatic
ISO rangeVideo:ISO100 ~ ISO6400
Photo:ISO100 ~ ISO6400
Shutter speedPhoto Mode:1/8000 ~ 8s
Other:1/8000 ~ 1/frame rates
Portrait blurReal-time image transmission portrait blur and photo portrait blur
Defog modeSupport
Zoom rangeDigital zoom:1 ~ 16 times
Photo formatJPG / DNG / JPG+DNG
Photo resolution50MP:8192×6144(4:3)
12.5MP(default):4096×3072(4:3)
4K:3840×2160(16:9)
Photo shooting modeSingle shot
Burst shooing: 3/5
Auto exposure bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/…/60s (DNG minimum 5s)
HDR imaging: 3840×2160
Video coding formatH265/H264
Video Resolution3840×2160 p30/25/24
2720×1528 p30/25/24
1920×1080 p60/50/48/30/25/24
HDR:
3840×2160 p30/25/24
2720×1528 p30/25/24
1920×1080 p60/50/48/30/25/24
Max bitrate100Mbps
TimelapseOriginal image:3840*2160,JPG/DNG
Video:4K P25
PanoramaHorizontal/Vertical/Wide-angle/Spherical
Original image: 4096*3072, JPG/DNG
Supported file systemFat32、exFat
Video formatMP4/MOV
WIFI transfer20MB/s



Operating frequency2.400-2.4835GHz,5.725-5.850GHz,5.150-5.250GHz
Max transmission distance (unobstructed, free of interference)FCC:10km
Operating temperature0°C ~40°C
Transmission power (EIRP)FCC:≤30dBm
Battery capacity3930mAh
Max battery life~ 3.5h (when connected to a mobile phone)
~ 2.5h (when not connected to mobile phone)
Interface typeType C
Transmission systemAutel SkyLink
Realtime transmission qualityTransmission distance<1km:2.7K 30fps
Transmission distance>1km:720P 30fps
Transmission bitrate90Mbps
Transmission delay≤200ms
Input100-240V/50-60HZ
Output5V⎓3A,9V⎓3A,12V⎓2.5A
Rated power30W
Capacity2250mAh
Voltage7.7V
Max charging voltage8.8V
Battery TypeLi-Po 2S
Energy17.32Wh
Charging temperature5~45℃
Single battery charging time90min
Max charging power30W
Mobile AppAutel Sky
Mobile system requirediOS 12.0 and above
Android 8.0 and above
Built-in storageNo
SD storagemax. support 256GB(UHS-3 rating required)
